Butt Welding Machine

The butt welding machines have been specifically designed for the effective joining of steel, aluminium and copper wires. Their strengths lie in the realization of precise, repeatedly accurate and draw-resistant butt welds.
It is aimed at industrial use in wire-drawing mills, cable factories and in wire processing. Depending on the requirement profile, butt welding, flash butt welding and dual force welding processes are utilized.

Description
Inquiry

WHW series of multi-stranded wire and copper-aluminum

stranded wire welding machines

I. Features

High precision: Full CNC processing, each device is tested.

Sturdy and durable: The box shell is made of Anshan steel plate and high-quality angle steel, which is corrosion-resistant and aging-resistant,

sturdy and durable.

Simple operation: One-button operation, convenient and simple.

Low maintenance cost: The circuit is simple, highly integrated and intelligent, which greatly reduces the failure rate of the product.

Safe and reliable: All exposed conductors, control circuits, and switches use DC12V or below safe low voltage, which is safe and guaranteed.

Precise docking: The controller is used for precise digital control, with a higher degree of automation and more accurate docking.

Beautiful joints: The welding process uses casing as a medium, which will not produce burrs, and all wires are fused uniformly.

High yield rate: 30 years of technical experience, good fit of various machine components, excellent performance, and a yield rate of up to 99.9%.

Quality guaranteed: Strictly implement IS09001 quality management system, outstanding performance, export-grade quality.

High configuration: Taiwan or the top 2 domestic brands of electrical appliances, pneumatic components

2. Application

WHW butt welding machine series belongs to the category of AC resistance butt welding machines. This series of

welding machines can butt various conventional multi-strand copper wires, aluminum wires or materials with the

same cross-section. It can also weld metal iron wires, copper wires, aluminum wires and other round wires.

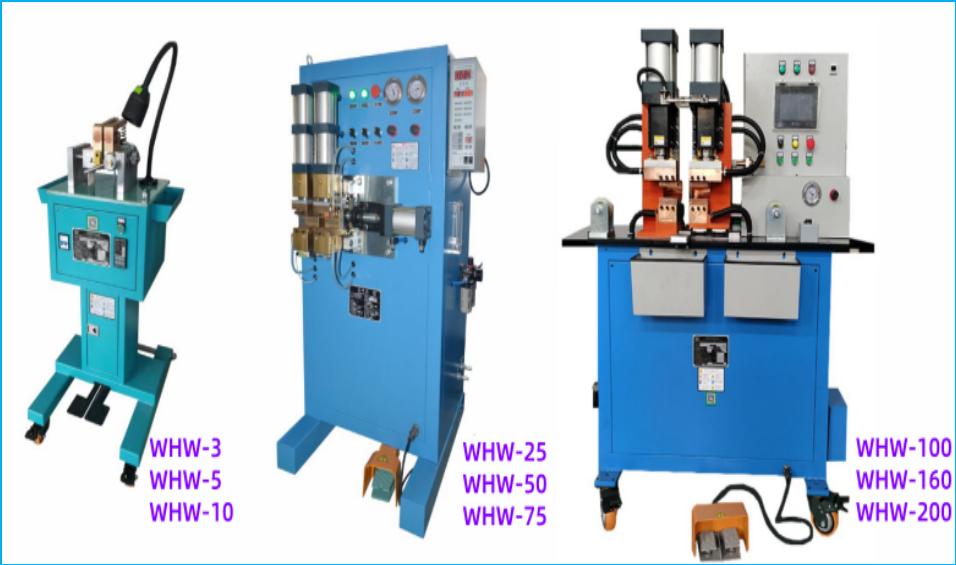

Model	Rated Power kVA	Rated voltage V	Rated Max.input current A	No-load output voltage V	Diameter of the reference welding round material(mm)
Model	Rated Power kVA	Rated voltage V	Rated Max.input current A	No-load output voltage V	Single Aluminium Ø mm	Single Copper Ø mm	Multiple Aluminium mm²	Multiple copper mm²
WHW-3	3	220	13	1.2-2.5	1-4	1-3	2.5-16	0.5-10
WHW-5	5	380	13	1.4-3.2	1-5	1-4	2.5-25	0.5-16
WHW-10	10	380	26	1.6.3.4	2.5-6	2.5-5	10-50	4-35
WHW-25	25	380	65.8	3.52	4-10	4-8	16-70	10-70
WHW-50	50	380	131	5.28	4-14	4-12	25-120	16-120
WHW-75	75	380	197	7.04	6-20	6-16	35-150	35-150
WHW-160	160	380	421.1	8	14-28	12-20	50-300	50-200
WHW-200	200	380	526.3	9	18-30	14-25	50-400	50-400
WHW-250	250	380	657.5	10	18-34	14-28	50-600	50-600
WHW-300	300	380	789	11	18-36	14-32	400-1000	300-800
